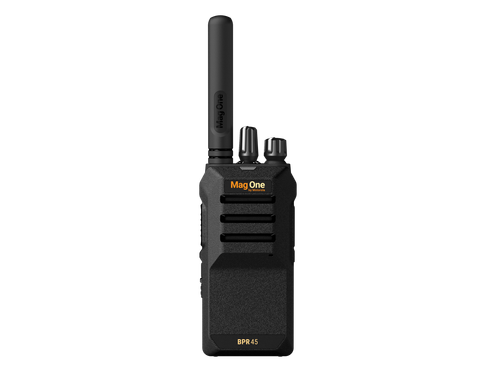

What Is the Motorola Mag One BPR45 UHF?
The Motorola Mag One BPR45 UHF (model AAH88SCK8AA3AN) is an analog business two-way radio that operates on 64 channels across 4 zones in the 400–470 MHz UHF band. It transmits at up to 4 watts, covers up to 350,000 square feet indoors, and delivers up to 16 hours of battery life per charge.
Motorola built the BPR45 for construction sites, warehouses, and campus operations where multi-department teams need clear communication across large properties. It features built-in USB-C charging and programming, up to 3 watts of audio output, IP55 dust and water resistance, and repeater compatibility, and it is tested to MIL-STD-810 C through H for shock, vibration, rain, humidity, salt fog, blowing dust, and temperature extremes.
At a glance
Technical Specifications
Who Is This For?
Construction Crews and Demanding Job Sites
Site supervisors, foremen, and trade crews who need a radio that holds up to dust, rain, and daily abuse. The BPR45 carries an IP55 rating and is tested to MIL-STD-810 C through H for shock, vibration, blowing dust and sand, and temperature extremes, with an operating range of −22°F to 140°F.
Warehouse and Distribution Operations
Shift leads, forklift operators, and receiving teams working in loud environments. Up to 3 watts of audio output helps messages cut through equipment noise, and up to 16 hours of battery life is built to last beyond a typical work shift. VOX support allows hands-free transmission when both hands are busy.
Campuses and Large Multi-Department Properties
Facilities, maintenance, and operations teams spread across a large property. With up to 350,000 square feet of indoor coverage and 64 channels organized into 4 zones, each department can have its own channels, and priority scan keeps users tuned to the channel that matters most. For properties that need even more coverage, the BPR45 is repeater capable.
Teams Expanding an Existing Analog Mag One Fleet
Businesses that already run Mag One radios in analog mode and want to add units without changing their system. The BPR45 works with existing Mag One fleets operating in analog mode, and when configured correctly, it can also work with MOTOTRBO radios operating in analog mode.
Key Features
Channels, Charging & Programming
64 channels across 4 zones
Organize your team with up to 64 channels distributed across 4 zones — enough to give each department or work area its own channels on a large property.
USB-C charging and programming
A built-in USB-C port handles both programming and charging, so the radio can be topped off on the go with a standard USB charger. The BPR45 ships with a single-unit charging tray, USB charging cable, and wall adapter.
Priority scan and nuisance channel delete
Priority scan keeps users monitoring their most important channel while scanning others, and nuisance channel delete lets them temporarily drop a busy or unwanted channel from the scan list.
Coverage & Durability
Up to 350,000 sq ft indoors, repeater capable
4 watts of UHF power covers up to 350,000 square feet indoors. When a site needs more, the BPR45 can be programmed to work through a repeater to extend coverage.
IP55 dust and water protection
Rated IP55 under IEC 60529 for dust and water intrusion, the BPR45 is built to withstand the demands of an active workday on job sites and in warehouses.
Tested to MIL-STD-810 C through H
Tested against six generations of the U.S. military standard for low pressure, high and low temperature, temperature shock, solar radiation, rain, humidity, salt fog, blowing dust and sand, vibration, and shock.
Audio & Communication
Up to 3 watts of audio output
A 3-watt maximum audio output delivers loud, clear audio so messages cut through noisy environments, paired with transmit basic noise reduction.
Voice and preset channel announcements
The radio announces settings and channel changes out loud, so users can confirm where they are without looking at the radio.
VOX, 2 programmable buttons, and analog scrambling
Voice Operated Transmission (VOX) supports hands-free use, two programmable buttons put frequently used functions within reach, and analog scrambling adds a layer of privacy to conversations.
What's Included
- Motorola Mag One BPR45 UHF Radio
- 2,200 mAh Li-Ion Battery (PMNN4908)
- Belt Clip (PMLN8741)
- Single-Unit Charging Tray (PMLN8599)
- USB Charging Cable (PMKN4274)
- Wall Adapter (PS000150A31)
- 2-Year Limited Warranty
- 30-Day Return Window
Custom programming is available for $10 per radio. Select the programming option before checkout, and Tech Wholesale will configure your radios with your channel frequencies, zones, and feature settings so they arrive ready to use. This is recommended if the new radios need to match an existing radio system or work through a repeater.
How Does the BPR45 Compare to Similar Radios?
Here is how the BPR45 UHF stacks up against three similar Motorola business radios. All four are UHF radios with no display.
| Spec | Mag One BPR45 UHF (this radio) | Mag One BPR50dx UHF | CP100d-UA | RMU2040 |
|---|---|---|---|---|
| Operating mode | Analog | Analog + DMR digital | Analog (digital-upgradeable) | Analog |
| Frequency range | 400–470 MHz | 400–470 MHz | 403–480 MHz | 450–470 MHz |
| Max transmit power | 4 W | 4 W | 4 W | 2 W |
| Channels | 64 | 64 | 16 | 4 |
| Battery life (standard battery) | Up to 16 hrs | 16 hrs analog / 23 hrs digital | 10.7 hrs analog | Up to 15 hrs (battery save on) |
| IP rating | IP55 | IP55 | IP54 | IP54/55 |
| MIL-STD-810 | C–H | C–H | C–G | C–G |
| Weight | 10.6 oz | 10.6 oz | 9.7 oz | 8.6 oz |
| Best for | Large analog teams that need lots of channels | Teams that need digital or lone worker safety | Analog teams planning a move to MOTOTRBO digital | Small indoor teams that need only a few channels |
Key Differences at a Glance
- BPR45 vs. BPR50dx UHF: Same 64 channels, 3 W max audio, USB-C charging, and rugged build. The BPR50dx adds DMR digital, Emergency Alert, Lone Worker, remote monitor, a third programmable button, and longer digital battery life. The two radios talk to each other in analog mode and share Mag One audio accessories, but their batteries are not interchangeable.
- BPR45 vs. CP100d-UA: The BPR45 gives you four times the channels, USB-C charging, and a longer-lasting standard battery. The CP100d-UA is part of Motorola’s MOTOTRBO line and can be unlocked for digital through a software upgrade, and an optional 2,250 mAh battery extends it to 15 hours analog.
- BPR45 vs. RMU2040: The BPR45 has twice the power and covers up to 350,000 sq ft indoors vs. 250,000 sq ft or 20 floors for the RMU2040. It also offers louder audio (3 W max vs. a 1,500 mW speaker), USB-C charging, and repeater capability. The RMU2040 is lighter and simpler, with 219 PL/DPL privacy codes and free browser-based programming software.
Motorola Mag One BPR45 UHF vs. BPR45 VHF
The BPR45 is available in both UHF (400–470 MHz) and VHF (136–174 MHz) versions. The UHF model transmits at up to 4 watts and the VHF model at up to 5 watts; all other features are the same. UHF is the standard choice for indoor environments because it penetrates concrete, drywall, and steel-framed structures more effectively. VHF is typically preferred for outdoor, open-terrain use. For most businesses operating in and around buildings, the UHF model on this page is the appropriate selection.
Compatible Accessories
All Mag One audio accessories for the BPR50dx are fully compatible with the BPR45, and the BPR45 supports two additional surveillance kits.
- Mag One Earbud with In-Line Microphone, PTT, and VOX (PMLN6534)
- Mag One Remote Speaker Microphone (PMMN4092)
- Mag One Swivel Earpiece with In-Line Mic and PTT (PMLN6532)
- 2-Wire Surveillance Kit with Quick Disconnect Acoustic Tube (PMLN6536)
- Mag One Ear Receiver with In-Line Microphone, PTT, and VOX (PMLN6531)
- Breeze Headset with Boom Mic and PTT (PMLN6542)
- 2-Wire Surveillance Kit with Clear Translucent Tube, Beige (PMLN6445) — BPR45 only
- 2-Wire Surveillance Kit with Clear Translucent Tube, Black (PMLN6530) — BPR45 only
- Single-Unit Charging Tray (PMLN8599)
- 6-Pocket Multi-Unit Charger (PMLN8893) — charges up to six radios or batteries
Frequently Asked Questions
Is the BPR45 analog or digital?
The BPR45 is analog only. If your team needs DMR digital operation, the Mag One BPR50dx UHF offers both analog and digital modes in a similar form factor.
What is the range of the BPR45 UHF?
The BPR45 UHF covers up to 350,000 square feet indoors. Actual range depends on building construction and the surrounding environment. For larger facilities or campuses that need more coverage, the BPR45 is repeater capable — contact Tech Wholesale to discuss repeater options.
Will the BPR45 work with my existing Mag One radios?
Yes. The BPR45 works with existing fleets of Mag One portable radios that operate in analog mode, so you can add BPR45 units to your current team without replacing everything at once.
Does the BPR45 work with MOTOTRBO radios?
Yes, in analog mode. When configured correctly, the BPR45 can work with MOTOTRBO radios operating in analog mode. It cannot communicate with MOTOTRBO radios on digital channels.
Does the BPR45 have an emergency button or Lone Worker feature?
No. Emergency Alert and Lone Worker are not part of the BPR45 feature set. These are digital features available on the Mag One BPR50dx UHF, which also adds remote monitor and radio disable/enable.
How long does the BPR45 battery last?
The included PMNN4908 2,200 mAh Li-Ion battery provides up to 16 hours of operating time, based on a 5/5/90 duty cycle at maximum transmit power. Actual runtime varies with use. Motorola currently has no plans to offer a high-capacity battery for the BPR45.
Can I use a BPR50dx battery in the BPR45?
No. Although both radios use 2,200 mAh Li-Ion batteries, the two batteries are not interchangeable. The BPR45 uses the PMNN4908 battery.
Which chargers work with the BPR45?
The BPR45 ships with a PMLN8599 single-unit charging tray, a PMKN4274 USB charging cable, and a PS000150A31 wall adapter. If you are buying a spare tray, Motorola specifies that the PMLN8599B works with both the BPR45 and BPR50dx, while the older PMLN8599A is compatible with the BPR50dx only. For fleets, the PMLN8893 6-pocket multi-unit charger charges up to six Mag One radios or standalone batteries at once.
Motorola recommends always charging the battery with an approved Motorola charger, as non-Motorola chargers may reduce performance or damage the battery.
Will the BPR45 overcharge if left on the charger?
No. The radio, battery, and charger have built-in charging algorithms and protective circuitry that automatically stop charging once the battery is full.
Does the BPR45 battery ship fully charged?
No. To comply with International Air Transport Association (IATA) policy, Motorola Solutions ships all Li-Ion batteries at less than 30% of their rated capacity. Charge the battery fully before first use.
How should I store BPR45 batteries?
Store batteries in a well-ventilated area at 68°F–86°F with 30%–60% humidity, away from flammable materials. New batteries going into storage should be charged to more than 50% (but less than 100%) within one month of receipt, and stored batteries should be recharged to more than 50% every 12 months. Motorola also recommends removing batteries from radios during storage to minimize drain.
Is the BPR45 waterproof?
The BPR45 is rated IP55 under IEC 60529 for dust and water ingress protection, which covers rain and splashing. IP55 is not a submersion rating, so the radio should not be submerged in water.
What does custom programming cost, and do I need it?
Custom programming is $10 per radio. Select the programming option before checkout, and Tech Wholesale will configure the radios with your channel frequencies, zones, and feature settings before they ship.
It is recommended if your new radios need to match an existing radio system, if you have specific licensed frequencies, or if the radios will be used with a repeater.
What antenna connector does the BPR45 use?
The BPR45 uses an SMA (SubMiniature version A) RF connector.
Does the BPR45 support VOX (voice-activated transmission)?
Yes. The BPR45 supports Voice Operated Transmission (VOX), which transmits automatically when the user speaks instead of requiring a push-to-talk button press. VOX works with compatible accessories such as the PMLN6534 earbud and PMLN6531 ear receiver.
Does the BPR45 or its accessories contain latex?
No. Motorola confirms there is no latex in the BPR45 radio or its new accessories.
What warranty comes with the BPR45?
The BPR45 includes a two-year limited warranty from Motorola Solutions.
